High Temperature Type B T Type S-Type Thermocouple Extension Wire Cable Electric Wire

Name: High Temperature Type B T Type SType Thermocouple Extension Wire Cable Electric Wire
Brand: Victory
Price: 1 USD

Wholesale High Temperature Type B T Type S-Type Thermocouple Extension Wire Cable Electric Wire from china suppliers

Brand Name : Victory

Model Number : K,N,E,J,T,B,R,S Types

Certification : CE,ROHS,ISO 9001

Place of Origin : China

MOQ : 5

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 5-21 days

Packaging Details : Spool package with Carton box, Coil package with polybag

Product name : Thermocouple extension wire

Color : bright

Certificate : ISO9001

Temperature range : 32 to 392F (0 to 200C)

EMF tolerance : +/- 2.2C or +/- .75%

Grade : Extension Grade NPX/NNX

Positive : Ni-cr-si

Negative : Ni-si-magnesium

other name : Nicrosil

Special Limits of Error : +/- 1.1C or 0.4%

Contact Now

Thermocouple Extension Wire is a cable specially designed for extending thermocouple signals. It is suitable for many thermocouple types, such as type K, type N, type E, type J, type T, type B, type R and type S. . This cable is used to transmit thermocouple signals from the measurement point to an instrumentation or control system for accurate temperature measurement and monitoring. Thermocouple Extension Wire has good linear characteristics and anti-interference ability, and can reliably transmit small and stable voltage signals to ensure the accuracy of temperature measurement. It is widely used in industrial fields, such as chemical plants, power equipment, metallurgical engineering, etc., as well as in laboratories and scientific research fields. Whether in high temperature environment, low temperature environment or extreme temperature conditions, Thermocouple Extension Wire can provide reliable signal transmission to meet the needs of temperature measurement.

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Precision grade		General grade
Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Tolerance μV	Thermal EMF range μV	Tolerance μV	Thermal EMF range μV
SorR	SC or RC	G	100	646	±30	616~676	±60	586~706
		H	100	646	-	-	±60	586~706
			200	1 1441	-	-		1.381~1 501

K	KX,KCA	G	-25	-968	±40	-924~-1 012	±80	-880~-1 056
	or KCB	G	100	4 096	±40	4 052~4 140	±80	4 008~4 184
		H	-25	-968	±40	-924~-1 012	±88	-880~-1 056
			100	4 096		4 052~4 140		4 008~4 184
			200	8 138		8 094~8 182		8 050~8 226
N	NX or NC	G	-25	-646	±43	-603~-689	±86	-560~-732
		G	100	2 774	±43	2 731~2 817	±86	2 688~2 860
		H	-25	-646	±43	-603~-690	±86	-560~-732
			100	2 774		2 731~2 817		2 688~2 860
			200	5 913		5 870~5 956		5 827~5 999
E	EX	G	-25	-1 432	±81	-1 351~-1 513	±138	-1 294~-1 570
		G	100	6 319	±81	6 238~ 6400	±138	6 181~6 457
		H	-25	-1 432	±81	-1 351~- 1513	±138	-1 294~-1 570
			100	6 319		6 238~6 400		6 181~6 457
			200	13 421		13 340~13 502		13 283~13 559
J	JX	G	-25	-1 239	±62	-1 177~-1 301	±123	-1 116~-1 362
		G	100	5 269	±62	5 207~5 331	±123	5 146~5 392
		H	-25	-1 239	±62	- 177~-1 301	±123	-1 116~-1 362
			100	5 269		5 207~5 331		5 146~5 392
			200	10 779		10 717~10 841		10 656~10 902
T	TX	G	-25	-940	±30	-910~-970	±60	-850~-1 000
		G	100	4 279	±30	4 249~4 309	±60	4 189~4 339
		H	-25	-940	±48	-892~-988	±90	-850~-1 030
			100	4 279		4231~4 327		4 189~4 369
			200

High Temperature Type B T Type S-Type Thermocouple Extension Wire Cable Electric Wire

Product Tags:

S-Type Thermocouple Extension Wire

ISO9001 Thermocouple Electric Wire

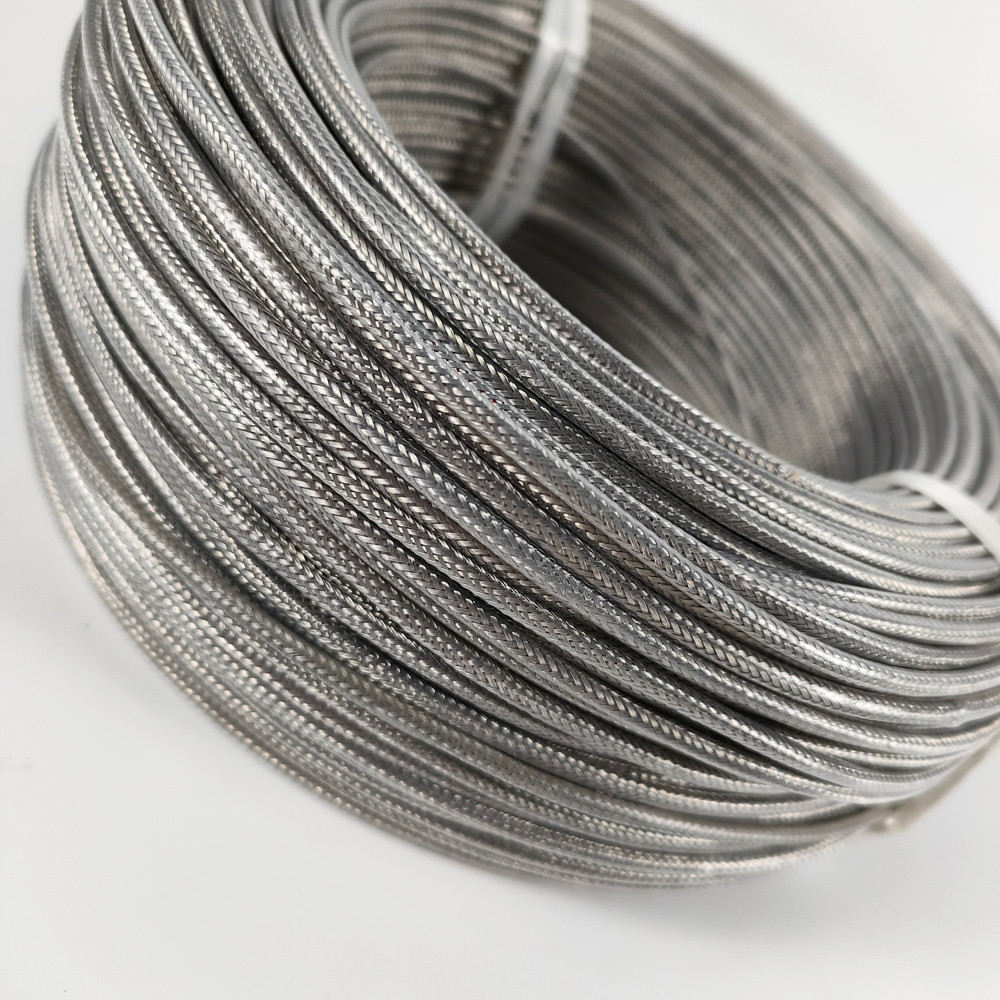

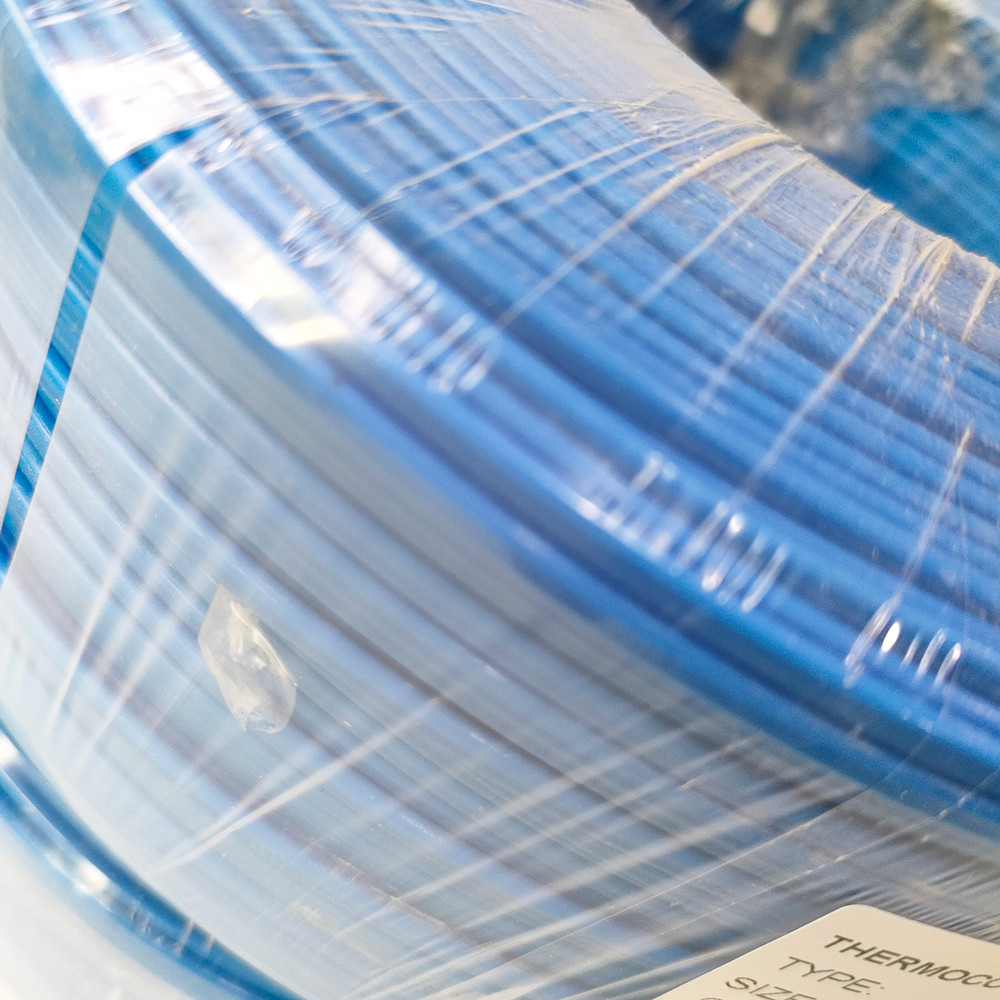

High Temperature Type B T Type S-Type Thermocouple Extension Wire Cable Electric Wire Images
